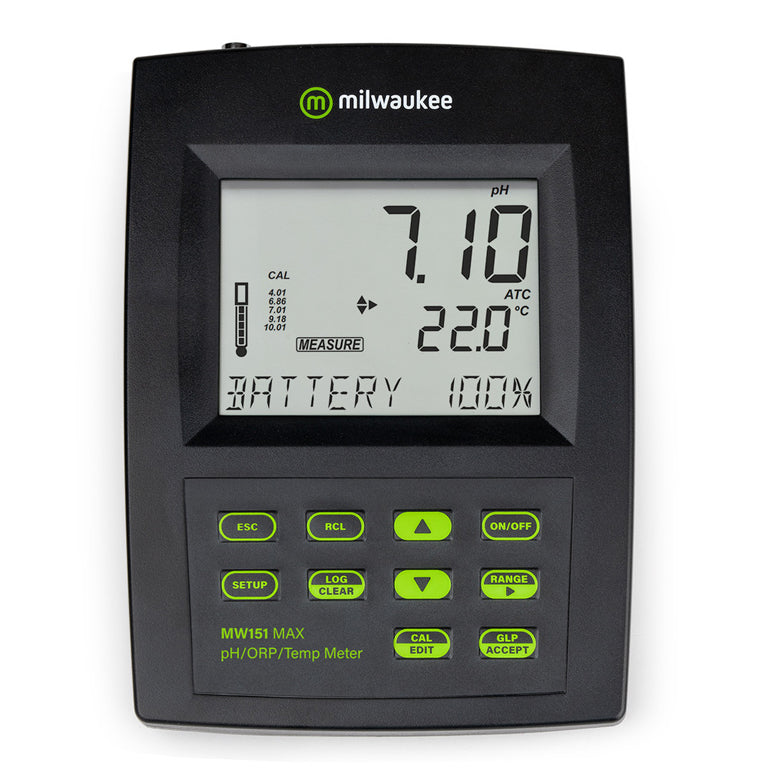

The MW151 high performance economy microprocessor-based pH/ORP/Temp Bench meter is an ideal tool in schools, laboratories and production plants.
It is provided with a series of new diagnostic features which add an entirely new dimension to the measurement of pH, by allowing the user to dramatically improve the reliability of the measurement.
Features:
- Automatic Temperature Compensation (ATC) for good accuracy under fluctuating temperatures
- Hold Function freezes reading for easy viewing;
- Easy to read large custom LCD
- Stability Indicator prompts whenever reading stabilizes;
- 7 memorized buffers (pH 1.68, 4.01, 6.86, 7.01, 9.18, 10.01 and 12.45) for calibration
- Messages on the LCD to make the calibration easy and accurate
- User-selectable‚ calibration time out‚ a reminder when a new calibration is necessary
- Stability Indicator prompts whenever reading stabilizes.

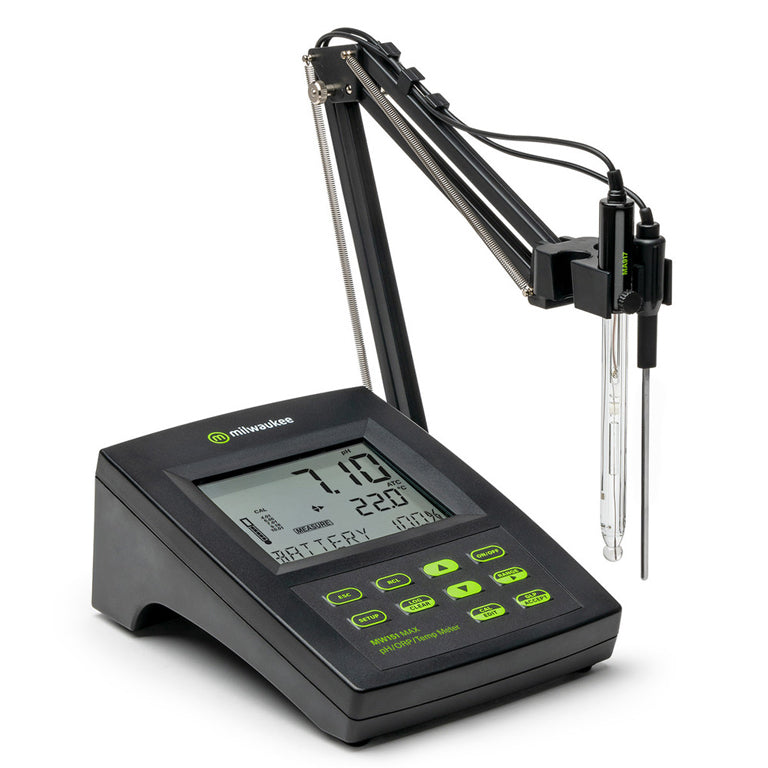

Mi151 can also measure with ORP electrodes, thanks to its capability to measure mV with a resolution up to 0.1 mV. For accurate measurements, use the electrode holder supplied with the meter
| Specifications |
| pH Range |
-2.00 to 16.00 pH |
| mV Range |
±699.9 mV / ±1999 mV |
| Temp Range |
-20.0 a 120.0 °C / -4.0 a 248.0 °F |
| pH Resolution |
0.01 pH |
| mV Resolution |
0.1 mV / 1 mV |
| Temp Resolution |
0.1 °C / 0.1 °F |
| mV Accuracy |
±0.2 mV / ±1 mV |
| pH Accuracy |
±0.01 pH |
| Temp Accuracy |
±0.4 °C / ±0.8 °F |
| pH Typical EMC Deviation |
±0.02 pH |
| mV Typical EMC Deviation |
±0.2 mV / ±1 mV |
| Temp Typical EMC Deviation |
±0.4 °C / ±0.8 °F |
| pH Automatic Calibration |
1 or 2 point-calibration, with 7 memorized buffers |
| Offset Calibration |
±1 pH |
| Slope Calibration |
from 80 to 108% |
| Temperature Compensation |
automatic, from -20.0 to 120.0 °C / -4.0 to 248.0 °F
or manual, without temperature probe |
| pH Electrode |
MA917B/1 (included) |
| Temperature Probe |
MA831R (included) |
| Environment |
0 to 50 °C / 32 to 122 °F; max RH 95% |
| Input Impedance |
1012 Ohm |
| Power supply |
12 VDC power adapter (included) |
| Dimensions |
230 x 160 x 95 mm |
| Weight |
0.9 kg |

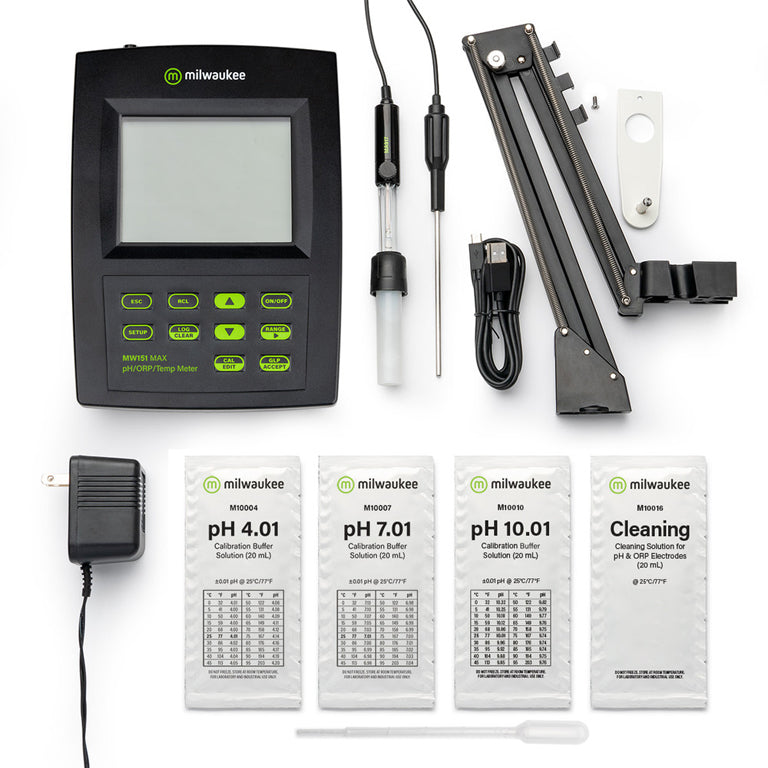

| The Mi151 is supplied complete with: |
|
- MA917 pH electrode
- Graduated Pipet
- Instruction manual
- 12 VDC Adapter
- pH 4.01 Sachet Buffer Solution
-
pH 7.01 Sachet Buffer Solution
- pH 10.01 Sachet Buffer Solution
|
This product carries a three year manufacturers warranty.
The probe is warrantied for a period of 6 months
