With Milwaukee's MC Controllers you can monitor and control pH and/or ORP levels.
The Milwaukee Instruments "MC" Controllers have a user selectable set point and a visual "Power Activated" LED notification light. Power to the controller box is turned on when the reading is Above or Below ( user selected ) the selected set point. These MC Controllers are ideal for CO2 or ozone dosing.
With each Milwaukee Smart controller, your aquarium will have the individual attention that it needs.

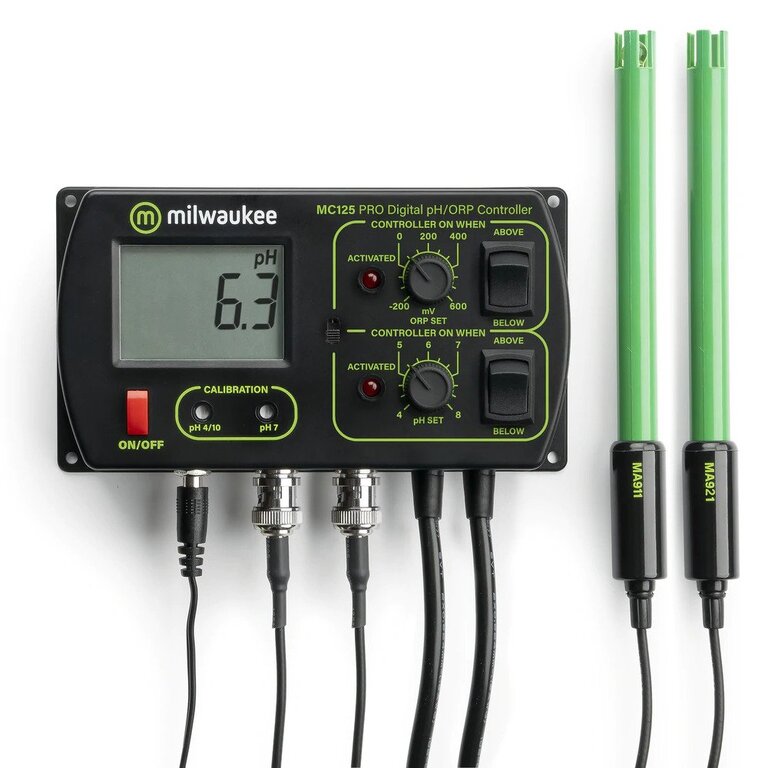

Each unit comes with 12 VDC adapter, mounting kit, probe, probe holder and starter calibration solution for pH. (factory calibrated for ORP)
Features:
- User selectable Hi/Low Set Point
- Manual 2 points calibration
- Visual LED alarm
- Supplied with 12 VDC adapter and mounting kit
- Power plug for CO2 dosing and 1 power plug for O3 dosing
- Double junction pH electrode and platinum ORP electrode (BNC connector)
- Supplied complete w/ 12 VDC adapter & mounting kit
| Specifications |
pH Range
|
0.00 - 14.00 pH |
ORP Range
|
± 1000mV |
pH Resolution
|
0.01 pH |
ORP Resolution
|
± 1 mV |
pH Accuracy
|
± 0.2 pH |
ORP Accuracy
|
± 5 mV |
| Calibration |
Manual 2 points |
| Alarm |
Active when reading is higher or lower than set point |
pH Dosing Contact
|
1 power plug for CO2 dosing |
| ORP Dosing Contact |
1 Power Plug for O3 dosing |
pH Electrode
|
MA911B/2 (included) |
ORP Electrode
|
MA921B/2 (included) |
Environment
|
0 to 50 oC / 32 to 122 oF; max RH 95% |
| Power Supply |
12 VDC adapter (included)
|
Power Drivers
|
115 VAC, 2A, 60Hz or 230 VAC, 1A, 50Hz |
| Dimensions |
148,5 x 82,5 x 32 mm |
| Weight |
180 g (meter only) |
Manual
